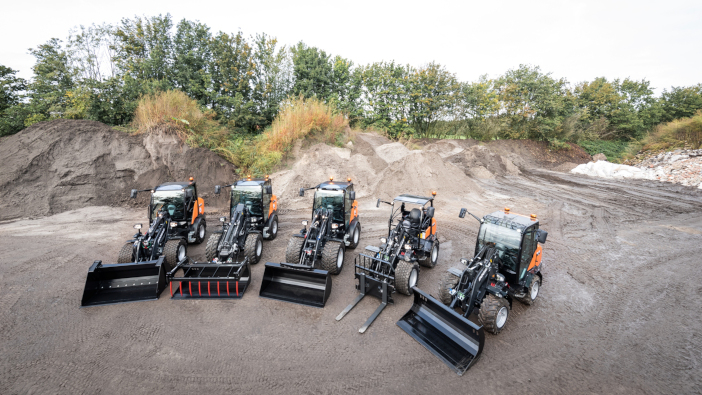

Doosan has now confirmed the details of its new five model range of 3.5-5 tonne compact wheel loaders. Available now the new models will suit a wide range of applications including construction, agriculture, waste/recycling, and landscaping.
The new range comprises of the 66hp DL60-7 and DL65-7 models which offer 48.5kW of power at 1600RPM and a top speed of 30km/h, and the 75hp DL80-7, DL85-7 and DL80TL-7 models which offer 55kW of power at 1500RPM, with top speeds of 35km/h.
The DL60-7 has an operating weight of 3750kg, the DL65-7’s is 3650kg, the DL80-7 and DL80TL-7 have operating weights of 5200kg, and the DL85-7’s is 5100kg.
All models run from Stage V engines, with high-pressure fuel injection and precise timing for efficient fuel burn. The after-treatment system is composed of an oxidation catalyst and long-life diesel particular filter, without requiring Selective Catalytic Reduction.
Hydrostatic transmission boosts acceleration performance and the brake pedal provides an inching function; with no pressure on the pedal, full power is available for the drive system; light pressure on the brake pedal reduces travel speed, with more engine power for the working hydraulics; with full pressure on the pedal, the machine stands still and full engine power is available for the working hydraulics.
An optional tandem pump, a double-acting spool valve in the rear, and up to three double-acting spool valves on the lift arm ensures the machines hydraulic power. A High Flow option for up to 121l/min is also available for the DL80-7, DL85-7 and DL80TL-7 models.
The Doosan compact wheel loaders are equipped with three types of kinematics, to suit preferences; a Z-bar arm to ensure high breakout force and loading heights (DL60-7 and DL80-7), a pull-bar arm for a lower front frame and higher lifting capacities (DL65-7 and DL85-7), and a telescopic arm to provide maximum lifting height and reach (DL80TL-7).
All Doosan models are equipped with a hydraulic quick coupler as standard. A wide range of attachments are also available, as are a selection of tyres.
For more information, visit www.eu.doosanequipment.com.
