    Cultivations

    KUHN to demonstrate at Cereals 2021

    lydiaturnerBy lydiaturnerMay 12, 202110 Mins Read
    Facebook Twitter LinkedIn Email
    Technical personnel investment continues for KUHN

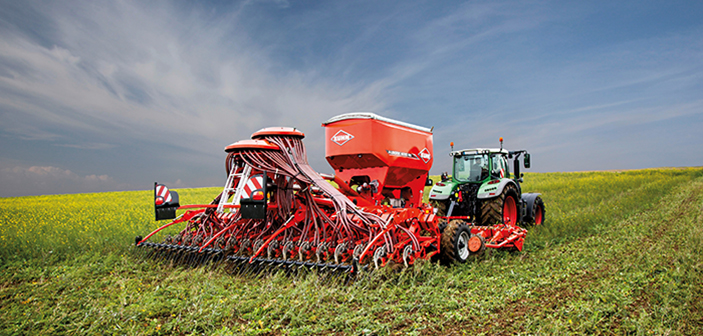

    KUHN Farm Machinery will demonstrate its multi-purpose Aurock triple disc seed drill, the electric drive Maxima 3e precision drill, the Performer disc and tine cultivator with seeder, the Striger strip-till cultivator, and their versatile TF front hopper at Cereals 2021.

    Aurock 6000 RC

    KUHN’s Aurock has the versatility to drill in no-till conditions, including into standing cover crops, and is equally effective in minimal cultivation systems. At Cereals, the company will demonstrate the 6 metre Aurock 6000 RC, with dual metering and a 5,000 litre capacity split hopper.

    This drill is designed for a low horsepower requirement, needing 180hp to operate. The ability to work in varying field conditions starts at the front with two rows of opening discs. There is the option of 460mm diameter corrugated discs, for working in prepared soil or soil mixing, or a 430mm diameter embossed disc for cutting residues efficiently and minimising soil ejection.

    Seed placement is carried out by the double disc seeding unit mounted on a parallelogram for optimum delivery accuracy and perfect ground following. Alignment with the opening discs is maintained by a central pivot point between the coulter bar and the chassis. This ensures that seeds drop accurately into the furrow, whether the drill is operating on a slope or around a bend. The opener discs and seeding unit assembly form the triple disc that KUHN attributes to it’s success in drill manufacture for forty years.

    With its dual metering capability, the Aurock 6000 RC offers numerous possibilities, including dual cropping or alternate row drilling with independent management of seeding depth. These options are increasingly relevant for farmers seeking more innovative cropping solutions, whether for pest control or improving soil health.

    The modular design of the Aurock allows the option of an integrated cutter roller with adjustable pressure to enable efficient operation in all cover types. The transport wheels are positioned between the opening disc and the coulter bar. The machine can also be equipped with a whole-width wheel train for seeding within a minimum tillage cropping system. The offset press wheels prevent soil from building up at the front and extend the versatility beyond direct seeding. They allow the passage of plant residues and reduce pull power requirement. The large 900mm diameter reduces rolling resistance.

    The Aurock is ISOBUS compatible, available with CCI 1200 or CCI 800 terminals (ISOBUS certified by the AEF). For enhanced ergonomics, a joystick is also available as optional equipment. The operator has a user-friendly and intuitive interface developed, with a simple press of a button at the headland allows successive lifting of the front tools, then the stop of the metering units, ensuring perfect seeding to the edge of the field.

    Maxima 3 RXe

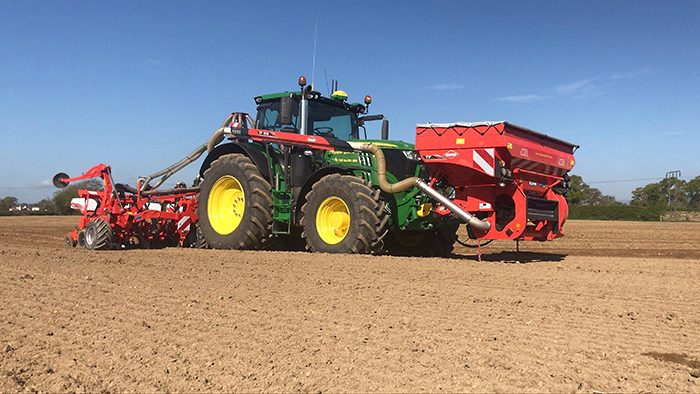

    Maxima 3 RXe with TF 1512 Martin Evans
    Maxima 3 RXe with TF 1512

    At Cereals 2021, the company will demonstrate the Maxima 3 RXe, an 8-row model with a three-section foldable frame.

    Work carried out by KUHN in the development of its electric drive seeding technology has shown that varying the seed rate in response to soil conditions can lead to seed savings of 2-3% when used in conjunction with section control (automated row shut-off). In addition to seed savings, variable seed rate also optimises plant populations according to available water and soil nutrients, with this resulting in an overall potential yield gain of between 5 and 8%.

    Maxima 3 precision drills are suitable for drilling maize, sunflower, beetroot, sugar beet, peas, beans, onions and other crops where row spacings from 37.5 to 80cm are used. The range includes 12 models in a choice of configurations, with electric drive versions being available in mounted formats including telescopic, foldable, and telescopic with adjustable spacing.

    With electrically driven models exclusively available with ISOBUS compatibility, control can be facilitated from either the tractor terminal or KUHN’s own CCI terminal. With 48-volt electrical power entirely independent of the tractor, constant and smooth operation of the seeding mechanism is maintained, with seed rate variation and section control being instant and precise to avoid any seed wastage.

    Both mechanical and electric versions of the Maxima 3 range use an improved seed selection and ejection system which enables accurate seed placement at working speeds of up to 10km/h.  Accuracy is also enhanced by a new seeding unit parallelogram which is reinforced in key areas, including at critical hinges and linkages, for added stability, robustness, and longevity.

    The coulter pressure system on the Maxima 3 can produce up to 180kg of downward pressure; this also enhances seeding accuracy by ensuring consistent depth control.

    Each seeding unit’s settings (depth, ground pressure, furrow closing, etc.) can be adjusted easily and quickly by hand and without the need for any specialist tools.  This not only makes setting up the machine more efficient, but also makes maintenance tasks less time consuming.

    A wide choice of optional equipment includes angle-adjustable V-Max rear closing wheels, which provide a furrow closing pressure of up to 45kg. Fertiliser hoppers, front, rear and intermediate press wheels, clod cleaners and trash wipers are also available.

    Performer 4000 with SH 600 seeder

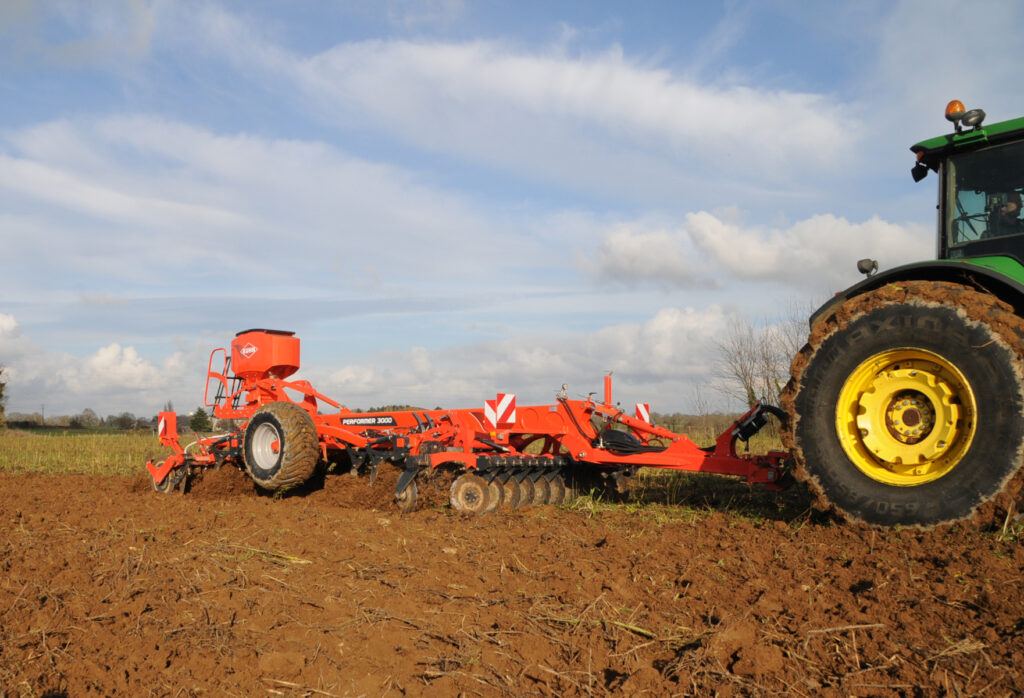

    Performer with SH seed applicator
    Performer with SH seed applicator

    KUHN’s Performer non-powered, deep working disc and tine cultivator will be demonstrated with the SH 600 seeder as an attachment. A 4m model will be at the event, representing a single pass range that now also includes 3, 5, 6 and 7 metre versions.

    The Performer can be equipped with two rows of 510mm independent and hydraulically adjustable discs and four rows of non-stop hydraulic (900kg) tines capable of working to a maximum depth of 350mm.  Hydraulically adjustable levelling discs can also be used.

    A choice of shares for mixing or loosening soil, including standard 80mm shares, 50mm subsoiling shares or wing shares, can be specified. For effective soil consolidation the Performer uses the HD Liner 700 notched roller with up to 225kg/m of hydraulically adjustable pressure.

    The Performer offers an effective single-pass solution as well as the versatility of different modes to suit a range of soil conditions and cultivation requirements. It can be used with discs and a roller for surface cultivation or with tines and a roller for sub-soiling; it can also operate with discs and tines for more aggressive work, or in a roller-free configuration for non-consolidation work.

    At the Cereals 2021 demonstration, KUHN’s Performer will be fitted with the SH 600 cover crop seeding unit, which offers the capability of applying all types of seed, or fertiliser, at rates from 1 to 430kg/ha.

    The SH 600, equipped with KUHN’s Venta metering unit and with the option of 16, 20 or 24 outlets from the distribution head, is designed for uniform seed spread across a 3–9 metre working width. Seed is distributed via discharge plates located in front of the cultivator roller to achieve optimum soil-to-seed contact.

    Precise and simple application rate settings are achieved using KUHN’s Quantron S2 control terminal, which aligns output with forward speed. Quantron S2 also monitors seed level and controls fan speed and metering unit speed.

    With a 600 litre hopper, the SH 600 has big bag capacity, and the machine is fitted with a ladder and walkway to allow safe and easy access when filling.

    Striger 100

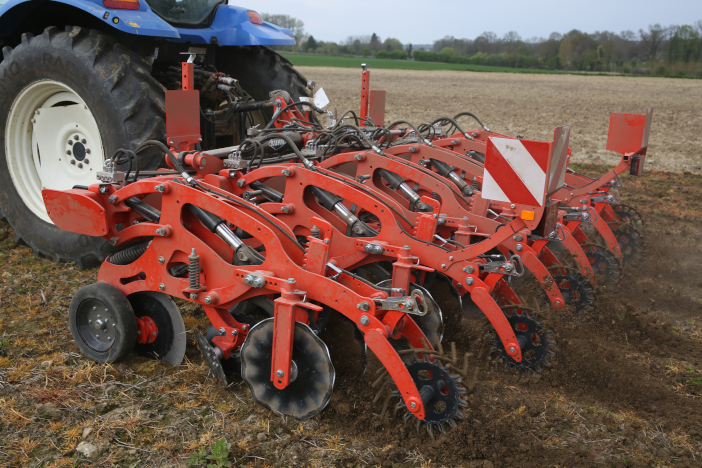

    Striger-100-high-res
    The Striger 100 strip-till cultivator

    In response to the growing interest in minimal tillage cultivations, KUHN has developed its Striger strip-till range and will demonstrate this machine at Cereals 2021.

    Available from 4 to 12 rows, the Striger 100 is designed around a parallelogram system that allows all elements to operate independently, ensuring excellent ground following characteristics.

    To achieve the optimum conditions for seed germination within the cultivated row, the Striger 100 comprises six key elements:

    1. Ground following is achieved using the hydraulic parallelogram and the gauge wheels, with each element being independent of the frame and the other elements.
    2. The opening disc cuts through any plant residues and creates a slot ready for the leg. As an option, a corrugated disc can be fitted which offers a better expansion of the furrow before the leg passes through.
    3. Debris clearers remove any residue from the seed furrow to provide a clean seedbed. They can be lifted out when work is resumed in spring.
    4. The leg and point cracks and loosens the seed furrow to allow good development of the roots. Working depth can be adjusted between 7 and 30cm without tools. To prevent soil ingress from the inter-row, the leg is independent from the deflector discs.
    5. The deflector discs channel the flow of soil while creating a fine tilth. The inter-row remains intact and weed emergence is significantly reduced.
    6. The rear press wheels reconsolidate the seedbed and avoid cavities in the seed furrow. The pressure is adjustable, and the press wheels can be raised during a pre-winter pass.

    The Striger 100 can be adapted to work effectively in all conditions and can accommodate liquid, solid or slurry fertiliser applications. It can be used with varying inter-row widths and with a wide choice of working parts and equipment. It is available in 3m, 3.50m, 4.40m and 6m formats.

    TF 1512 front hopper

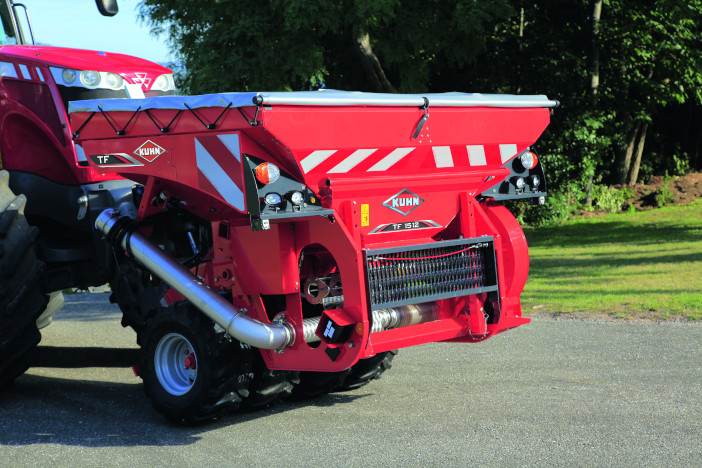

    The TF front hopper
    The TF front hopper with ISOBUS control

    KUHN will demonstrate its TF 1512 high-capacity front hopper at Cereals 2021, positioning it as a versatile option for seeding crops and cover crops as well as serving as a fertiliser hopper. Hopper capacities of either 1,500 or 2,000 litres make this a combination option that can add significant efficiency to a range of operations.

    The TF 1512 hopper can be used in combination with mechanical seed drills, precision seed drills and tillage tools.

    It incorporates KUHN’s Venta metering system with volumetric flutes, having the capability to distribute seeds, fertiliser and cover crops with no additional equipment required. All central components are in stainless steel. No tools or disassembly is necessary for maintenance.

    Equipped with an electric drive system, application rate can be adjusted while working, either manually or via a variable rate application map.

    The TF 1512 front hopper is equipped with a powerful blower and a side air-outlet. Any risk of blockage from large seeds or fast seeding is eliminated. There are no tubes under the tractor or in the field of vision.

    A front packer with 4 wheels is also available for soil levelling between the wheels of the tractor, or a carrying frame to prevent compaction. In both cases extra balance weights can be added for more stability.

    The calibration button is next to the metering unit, enabling the flow test function to be initiated without having to get into the tractor cab.

    The TF 1512 hopper is available as an ISOBUS machine. It can be controlled with an ISOBUS CCI terminal or the tractor’s ISOBUS terminal. Alternatively, it can be controlled with KUHN’s Quantron S-2 terminal for total and precise seeding management.

    The TF 1512 front hopper provides excellent balance between the tractor and the machine. Driving is easier with improved balance, and a lighter load on the rear axle helps manoeuvrability and road travel. Soil compaction is also reduced with better load balance.

    The TF 1512 hopper can be easily filled from a bulk trailer or with a big bag and a front loader. It is also possible to fill the hopper safely from small bags using the access platform.

    For more information go to www.kuhn.co.uk
